Application class is used to operate the JMAG-Designer application.
Each class object is called from Application class.
. More...

Inherits ApplicationBase.

Public Member Functions
void	AppendScriptXML (String &xml)
	Since this is an internal function, it is not officially supported. More...

void	ApplyAnalysisTemplate (AnalysisTemplateParameter *parameter)
	Specifies the analysis template of the tool box and associates the template with the CAD model. More...

void	AttachMotorTemplate (long pid)
	Since this is an internal function, it is not officially supported. More...

void	CancelProcess ()
	Cancels a job generating mesh or running a calculation.

bool	CanRedo ()
	Returns whether it is possible to redo or not. More...

bool	CanUndo ()
	Returns whether it is possible to undo or not. More...

void	CheckFolderResults (String &folder)
	Imports result files (*.jplot) in a specified folder. More...

void	CheckForNewResults ()
	Loads results that have not been imported for all studies included in a project.

void	ClearError ()
	Clears errors.

void	ClearUndoStack ()
	Clears the undo stack.

void	ClearWarning ()
	Clears warnings.

void	CopyToClipboard (Variant &data)
	Copies the specified character string to the clipboard. More...

TwoDFourierTransformParameter *	Create2DFourierTransformParameter (String &name)
	Returns a TwoDFourierTransformParameter object. More...

AnalysisGroup *	CreateAnalysisGroup (String &typeName, String &name=String("untitled"))
	Creates AnalysisGroup object. More...

Model *	CreateAnalysisModelFromTemplate (StringList &geometryKeys, StringList &scenarios)
	Create an analysis model by combining geometry libraries and scenarios.

AnalysisTemplateParameter *	CreateAnalysisTemplateParameter ()
	Returns the AnalysisTemplateParameter object. More...

CircuitConditionConnector *	CreateCircuitConditionConnector (Study *study)
	Creates a CircuitConditionConnector object. More...

Model *	CreateCircuitModel (String &name=String("untitled"))
	Creates a Model object for integration study. More...

Cylinder *	CreateCylinder ()
	Creates a Cylinder object. More...

DataSetParameter *	CreateDataSetParameter (String &name)
	Returns a DataSetParameter object. More...

SimpleDialogBox *	CreateDialogBox ()
	Creates a SimpleDialogBox object. More...

DriveCycleResponseDataParameter *	CreateDriveCycleResponseDataParameter (String &name)
	Creates a DriveCycleResponseDataParameter object. More...

EfficiencyMapResponseDataParameter *	CreateEfficiencyMapResponseDataParameter (String &name)
	Creates a EfficiencyMapResponseDataParameter object. More...

ExtractFrequencyParameter *	CreateExtractFrequencyParameter (String &name)
	Returns the ExtractFrequencyParameter object. More...

FFTParameter *	CreateFFTParameter (String &name)
	Returns a FFTParameter object. More...

IDispatch *	CreateGeometryEditor (bool askForSave=true)
	Starts Geometry Editor, and either creates new geometry or edits the geometry. More...

TRemoteObjectProxy *	CreateGeometryEditorInternal (bool askForSave=true)
	Since this is an internal function, it is not officially supported. More...

GraphIntegralParameter *	CreateGraphIntegralParameter (String &name)
	Returns the GraphIntegralParameter object. More...

Job *	CreateJob (String array &studies)
	Creates a Job object to perform batch execution of the all models. A “Job” is a command to run an analysis that is exchanged between machines. More...

Material *	CreateMaterial (String &name)
	Returns a Material object by specifying a name. More...

IDispatch *	CreateMotorTemplate ()
	Creates an instance with JMAG-Express. More...

TRemoteObjectProxy *	CreateMotorTemplateInternal ()
	Since this is an internal function, it is not officially supported. More...

ParallelGroupConditionCreator *	CreateParallelConditionCreator (Study *study)
	Creates a ParallelGroupConditionCreator object. More...

Point *	CreatePoint (Variant &x, Variant &y, Variant &z)
	Returns a Point object by specifying the coordinates (x, y, z). More...

ProjectExportParameter *	CreateProjectExportParameter ()
	Creates a ProjectExportParameter object. More...

ResponseDataParameter *	CreateResponseDataParameter (String &name)
	Creates a ResponseDataParameter object. More...

RotateGroupConditionCreator *	CreateRotateConditionCreator (Study *study)
	Creates a RotateGroupConditionCreator object. More...

RttFileParameter *	CreateRttFileParameter ()
	Returns a RttFileParameter object. More...

IDispatch *	CreateTransformerEditor ()
	Creates an instance with the Transformer Modeling tool.

TRemoteObjectProxy *	CreateTransformerEditorInternal ()
	Since this is an internal function, it is not officially supported. More...

void	DeleteAnalysisGroup (Variant &val)
	Deletes an analysis group by specifying a name or index. More...

void	DeleteModel (Variant &val)
	Deletes a model by specifying a name or index. More...

void	DetachMotorTemplate ()
	Since this is an internal function, it is not officially supported. More...

void	EndCommandGroup ()
	Stops grouping commands together.

void	ExportAnalysisParameters (String &filename, bool exportCADParameter)
	Exports Analysis Parameter items to designated file. More...

void	ExportHoopsFile (String &filename)
	Exports hoops file to the specified file name. More...

void	ExportImage (String &filename)
	Exports the model displayed in the graphics window as an image. More...

void	ExportImageWithSize (String &filename, int width, int height)
	Exports the model displayed in the graphics window as an image with the specified size. More...

void	ExportProject (String &filename, ProjectExportParameter *parameter)
	Exports the study set to the ProjectExportParameter object to the project file. More...

void	FinishBatchMaterialUpdate ()
	Ends batch Material object update.

FunctionObjectFactory *	FunctionFactory ()
	Returns the FunctionObjectFactory object. More...

ResultViewItemList *	GetAllCasesResultViewItemList ()
	Returns result view list for all cases. More...

Variant	GetAllMessages ()
	Returns a list of all messages. More...

AnalysisGroup *	GetAnalysisGroup (Variant &val)
	Returns an analysis group by specifying a name or index. More...

String	GetAppDir ()
	Returns the installation folder of JMAG-Designer. More...

String	GetCreatorName ()
	Returns the name of the creator of the project specified in the project properties. More...

AnalysisGroup *	GetCurrentAnalysisGroup ()
	Returns the analysis group containing the active study.

Model *	GetCurrentModel ()
	Returns an active model. More...

CurrentResult *	GetCurrentResult ()
	Returns the CurrentResult object. More...

Study *	GetCurrentStudy ()
	Returns the active Study object. More...

DataManager *	GetDataManager ()
	Returns the DataManager object. More...

String	GetDefaultModelFolderPath ()
	Since this is an internal function, it is not officially supported. More...

String	GetDescription ()
	Returns the description in the project properties. More...

String	GetLastMessage ()
	Returns the latest error message as a string. More...

MaterialLibrary *	GetMaterialLibrary ()
	Returns the MaterialLibrary object. More...

Model *	GetModel (Variant &val)
	Returns the Model object by specifying a name or index. More...

String	GetModelNameInProjectFromFilePath (String &filename)
	Returns the project file name by specifying the file path. More...

String	GetOpenFile (String &filter=String())
	Opens the file select dialog and opens the selected file. More...

ParameterSettingStatus *	GetParameterSettingStatus ()
	Returns a ParameterSettingStatus object to specify the display status of the analysis parameter list. More...

Variant	GetPreference (String &propName)
	Returns the current settings for the items in the [Preferences] dialog (such as language, encoding, etc.). More...

String	GetProjectFolderPath ()
	Returns the path for the folder (*.jfiles) as a string. More...

String	GetProjectKey ()
	Returns the project key. More...

String	GetProjectName ()
	Returns the name of a project as a string. More...

String	GetProjectPath ()
	Returns path for project file (*.jproj) as a string. More...

ResultViewItemList *	GetResultViewItemList ()
	Returns result view list. More...

String	GetSaveFile (String &filter=String())
	Opens the save file dialog and returns the specified file name. More...

Study *	GetStudy (Variant &val)
	Returns a Study object by specifying a name or index. More...

CurrentResult *	GetStudyResult (String &studyIdentifier, int caseIndex)
	Since this is an internal function, it is not officially supported. More...

UserComponentList *	GetUserComponentList ()
	Returns the UserComponentList object. More...

String	GetUuid ()
	Returns the project UUID number. More...

bool	HasAlreadyLoadModelInProject (String &filename)
	Returns whether or not a specified model is loaded to the project. More...

bool	HasError ()
	Returns True as a return value when errors occur. More...

bool	HasRunningProcess ()
	Returns True as the return value when a job is generating mesh or running a calculation. More...

bool	HasWarning ()
	Returns True as a return value when warnings occur. More...

void	Hide ()
	Hides the main window.

void	Import2DDataFromMotorTemplate (bool isPartial)
	Imports the model created with JMAG-Express into JMAG-Designer as a 2D model. More...

void	Import2DDataFromMotorTemplateIndex (int index, bool isPartial)
	Imports the model created by specifying the JMAG-Express into JMAG-Designer as a 2D model. More...

void	Import3DDataFromMotorTemplate (bool isPartial, bool createCoilEnd)
	Imports the model created with JMAG-Express into JMAG-Designer after being converted to a 3D model. More...

void	Import3DDataFromMotorTemplateIndex (int index, bool isPartial, bool createCoilEnd)
	Imports the model created by specifying the JMAG-Express into JMAG-Designer after being converted to a 3D model. More...

void	ImportAnalysisTemplate (AnalysisTemplateParameter *parameter)
	Imports an analysis template (*. jtmpl) and links the template to a CAD model. More...

void	ImportDataFromGeometryEditor ()
	Imports a model created with Geometry Editor into JMAG-Designer.

void	ImportDataFromGeometryEditorIndex (int index)
	Imports a model created by specifying the Geometry Editor into JMAG-Designer. More...

void	ImportDataFromMotorTemplate ()
	Imports a model created with JMAG-Express into JMAG-Designer.

void	ImportDataFromTransformerEditor ()
	Imports a model created with the Transformer Modeling tool into JMAG-Designer.

void	ImportDataFromTransformerEditorIndex (int index)
	Imports a model created by specifying the Transformer Modeling tool into JMAG-Designer. More...

void	ImportModel (String &statorKey, String &rotorKey)
	Imports stator and rotor models at the same time. More...

bool	IsExpressMode ()
	Returns True as a return value when running in Express mode. More...

bool	IsIdRecordingMode ()
	Since this is an internal function, it is not officially supported. More...

bool	IsStartRecording ()
	Since this is an internal function, it is not officially supported. More...

bool	IsValid ()
	Returns True as the return value if an object is valid. More...

void	LaunchGeometryEditor ()
	Starts Geometry Editor, and creates new geometry or edits the geometry.

void	LaunchMotorTemplate ()
	Starts JMAG-Express.

void	LaunchTransformerEditor ()
	Starts the Transformer Modeling tool.

void	Load (String &filename)
	Imports data from the specified file. More...

void	Load2DSAT (String &filename)
	Imports a 2D SAT file. More...

Model *	LoadCadData (String &filename, String &name)
	Returns a Model object with the specified name by importing a CAD file. More...

Model *	LoadCadDataWithOption (String &filename, String &name, bool useHealing, bool removeSheet, String &unitName="")
	Returns the Model object with the specified name by importing a CAD file. Functions such as healing and removing sheet parts and specify unit of length can be selected as options. More...

Model *	LoadCATIAV5CadData (String &filename, String &name, bool onlyVisibleSolid, bool useHealing, bool removeSheet, String &unitName="")
	Returns the Model object with the specified name by importing a CATPart or CATProduct file. Functions such as only import visible solid, healing and removing sheet parts and specify unit of length can be selected as options. More...

Model *	LoadCreoCadData (String &filename, String &name, bool onlyVisibleSolid, bool useHealing, bool removeSheet, String &unitName="")
	Returns the Model object with the specified name by importing an asm or prt file. Functions such as only import visible solid, healing and removing sheet parts and specify unit of length can be selected as options. More...

void	LoadMesh (String &filename)
	Imports data from the specified file (mesh data). More...

void	LoadNewCaseData (String &xmldata)
	Since this is an internal function, it is not officially supported. More...

void	LoadNewCaseFile (String &filename)
	Since this is an internal function, it is not officially supported. More...

Model *	LoadNXCadData (String &filename, String &name, bool onlyVisibleSolid, bool useHealing, bool removeSheet, String &unitName="")
	Returns the Model object with the specified name by importing a CAD file. Functions such as only import visible solid, healing and removing sheet parts and specify unit of length can be selected as options. More...

void	LoadRTTP (String &filename, String &password)
	Imports data from the specified file and set password. More...

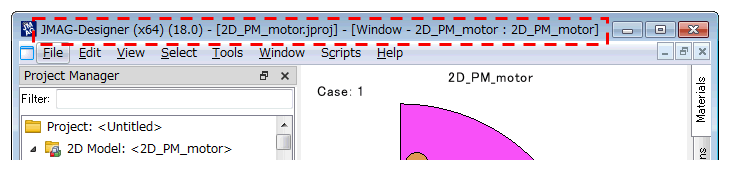

String	MainWindowTitle ()
	Returns the character string displayed in the title bar of the main window. More...

int	MajorVersion ()
	Returns the major version number. More...

int	MinorVersion ()
	Returns a minor version number. More...

void	NewProject (String &name)
	Creates a project with the given name. More...

int	NumAnalysisGroups ()
	Returns the number of analysis groups. More...

int	NumModels ()
	Returns the number of models. More...

int	NumStudies ()
	Returns the number of studies. More...

void	OnHiddenMotorTemplate (qint64 pid)
	Since this is an internal function, it is not officially supported. More...

void	OutputLogDebugInfo (String &info)
	Since this is an internal function, it is not officially supported. More...

void	OutputLogInfo (String &info)
	Since this is an internal function, it is not officially supported. More...

void	PopUndoStack ()
	Undoes the last action and disable redo.

void	Quit ()
	Exits the application.

void	Raise ()
	Brings the JMAG-Designer window to the front.

void	Redo ()
	Redoes the last action.

void	RunScriptFile (String &filename, String &type="")
	Runs a script file (*.vbs). More...

void	Save ()
	Saves data in the user folder.

void	SaveAs (String &filename)
	Saves data to a specified path. More...

void	SetCloseWithoutTermination (bool flag)
	Since this is an internal function, it is not officially supported. More...

void	SetCreatorName (String &name)
	Specifies the name of the project creator. More...

void	SetCurrentModel (Variant &val)
	Switches an active model by specifying a name or index. More...

void	SetCurrentStudy (Variant &val)
	Switches an active study by specifying a name or index. More...

void	SetDescription (String &description)
	Specifies the description of the project. More...

void	SetGeometry (int x, int y, int w, int h)
	Determines the position and size of the window. More...

void	SetMessageVisible (bool on)
	Since this is an internal function, it is not officially supported. More...

void	SetModelAsCurrent (Model *model)
	Activates the specified Model object. More...

void	SetModelOrder (Variant &val, int position)
	Changes the order of the studies. More...

void	SetPosition (int x, int y)
	Determines the position of the window. More...

void	SetPreference (String &propName, Variant &val)
	Updates the current settings for the items in the [Preferences] dialog (such as language, encoding, etc.). More...

void	SetProjectName (String &name)
	Specifies the name of a project. More...

void	SetShowProgressDialog (bool show)
	Since this is an internal function, it is not officially supported. More...

void	SetSize (int w, int h)
	Determines the size of the window. More...

void	SetStudyAsCurrent (Study *study)
	Activates the specified Study object. More...

void	SetupUserProgress (String &label)
	This function needs to be called before starting the progress display in the progress dialog. More...

void	SetUseExceptions (bool useExceptions)
	Specifies the flag to convert errors to Python exceptions. More...

void	SetUserProgressMaxSteps (int steps)
	Specifies a progress interval on the dialog using the specified number of steps. More...

void	SetUserProgressMessage (String &label)
	Specifies a message on the progress dialog. More...

void	SetUserProgressUseCancel (bool useCancel)
	Specifies whether to use the Cancel button in the progress dialog. More...

void	SetVisible (bool visible)
	Switches between displaying and hiding the main window of the application. More...

void	Show ()
	Shows the main window of the application.

void	ShowCircuitGrid (bool show)
	Switches between showing and hiding the grid of circuit editor. More...

void	Sleep (int milliSeconds)
	Specifies JMAG-Designer in sleep mode to a specified period of time. More...

void	StartBatchMaterialUpdate ()
	Starts batch Material object update. More...

void	StartCommandGroup (String &description)
	Starts grouping multiple commands together as one action. More...

void	SubmitAllModelsLocal ()
	Submits all studies of a project to queue on a local machine.

void	SubmitAllModelsRemote (String &machine, String &cpu, Variant &keepremote)
	Submits all studies of a project to queue on a specified machine. More...

void	SubmitLocalFromJproj (String array &studies, int numOfJobs)
	Submits selected studies to queue on a local machine. More...

void	SubmitRemoteFromJproj (String array &studies, int numOfJobs, String &machine, String &cpu, Variant &keepremote)
	Submits selected studies to queue on a specified machine. More...

int	SubVersion ()
	Returns the subversion number. More...

void	SwitchLicense ()
	Switches to JMAG-Designer license.

String	Translate (String &value, String &context)
	Translates a string. More...

void	Undo ()
	Undoes the last action.

void	UserProgressFinish ()
	Finishes displaying the progress dialog.

void	UserProgressStart ()
	Starts displaying the progress dialog.

void	UserProgressStep ()
	Progresses 1 step on the progress dialog.

bool	UserProgressWasCanceled ()
	Returns True as a return value if the progress dialog is canceled. More...

String	VersionString (bool includeSub)
	Returns the version number as a string. More...

ViewController *	View ()
	Returns a ViewController object. More...

bool	visible ()
	Returns True as the return value if the main window of application is displayed. More...

Detailed Description

Application class is used to operate the JMAG-Designer application.
Each class object is called from Application class.
.

Use application name "designer" to obtain an Application class object.

Example of calling in Python: app = designer.GetApplication()
Example of calling in VBScript: app = designer

When starting up as an external application:
app = CreateObject("designer.Application")
Example of calling in JScript: app = designer

When starting up as an external application:
app = new ActiveXObject("designer.Application")

Member Function Documentation

void Application::AppendScriptXML ( String & xml )

Since this is an internal function, it is not officially supported.

Deprecated:

void Application::ApplyAnalysisTemplate ( AnalysisTemplateParameter * parameter )

Specifies the analysis template of the tool box and associates the template with the CAD model.

Parameters

AnalysisTemplateParameter object

void Application::AttachMotorTemplate ( long pid )

Since this is an internal function, it is not officially supported.

Deprecated:

bool Application::CanRedo ( )

Returns whether it is possible to redo or not.

Returns: Whether it is possible to redo or not.

bool Application::CanUndo ( )

Returns whether it is possible to undo or not.

Returns: Whether it is possible to undo or not.

void Application::CheckFolderResults ( String & folder )

Imports result files (*.jplot) in a specified folder.

Parameters

folder Folder path

void Application::CopyToClipboard ( Variant & data )

Copies the specified character string to the clipboard.

Parameters

data	Data to be copied

TwoDFourierTransformParameter * Application::Create2DFourierTransformParameter ( String & name )

Returns a TwoDFourierTransformParameter object.

Parameters

name	Title of dataset to be created

Returns: TwoDFourierTransformParameter object

AnalysisGroup * Application::CreateAnalysisGroup	(	String &	typeName,
		String &	name = `String("untitled")`
	)

Creates AnalysisGroup object.

Parameters

typeName	Calculation type name "sequential"=Selected study is calculated sequentially "coupled"=Direct coupled analysis is run from the selected study
name	Analysis group name

Returns: AnalysisGroup object

AnalysisTemplateParameter * Application::CreateAnalysisTemplateParameter ( )

Returns the AnalysisTemplateParameter object.

Returns: AnalysisTemplateParameter object

CircuitConditionConnector * Application::CreateCircuitConditionConnector ( Study * study )

Creates a CircuitConditionConnector object.

Parameters

study Study object

Returns: CircuitConditionConnector object

Model * Application::CreateCircuitModel ( String & name = String("untitled") )

Creates a Model object for integration study.

Parameters

name	Name of the model

Returns: Model object

Cylinder * Application::CreateCylinder ( )

Creates a Cylinder object.

Returns: Cylinder object

DataSetParameter * Application::CreateDataSetParameter ( String & name )

Returns a DataSetParameter object.

Parameters

name	Title of dataset to be created

Returns: DataSetParameter object

SimpleDialogBox * Application::CreateDialogBox ( )

Creates a SimpleDialogBox object.

Returns: SimpleDialogBox object

DriveCycleResponseDataParameter * Application::CreateDriveCycleResponseDataParameter ( String & name )

Creates a DriveCycleResponseDataParameter object.

Parameters

name	Name of the response value

Returns: DriveCycleResponseDataParameter object

EfficiencyMapResponseDataParameter * Application::CreateEfficiencyMapResponseDataParameter ( String & name )

Creates a EfficiencyMapResponseDataParameter object.

Parameters

name	Name of the response value

Returns: EfficiencyMapResponseDataParameter object

ExtractFrequencyParameter * Application::CreateExtractFrequencyParameter ( String & name )

Returns the ExtractFrequencyParameter object.

Parameters

name	Dataset title to be created

Returns: ExtractFrequencyParameter object

FFTParameter * Application::CreateFFTParameter ( String & name )

Returns a FFTParameter object.

Parameters

name	Title of dataset to be created

Returns: FFTParameter object

IDispatch * Application::CreateGeometryEditor ( bool askForSave = true )

Starts Geometry Editor, and either creates new geometry or edits the geometry.

Returns: GeomApplication object

For more information about GeomApplication class command, see Geometry Editor Script Help "GeomApplication."

TRemoteObjectProxy * Application::CreateGeometryEditorInternal ( bool askForSave = true )

Since this is an internal function, it is not officially supported.

Deprecated:

GraphIntegralParameter * Application::CreateGraphIntegralParameter ( String & name )

Returns the GraphIntegralParameter object.

Parameters

name	Dataset title to be created

Returns: GraphIntegralParameter object

Job * Application::CreateJob ( String array & studies )

Creates a Job object to perform batch execution of the all models. A “Job” is a command to run an analysis that is exchanged between machines.

Parameters

studies Study index

Returns: Job object

Material * Application::CreateMaterial ( String & name )

Returns a Material object by specifying a name.

Parameters

name	Material name

Returns: Material object

Create a material using the command of the MaterialLibrary class when using JMAG-Designer 10.0 or later.
An object needs to be created and assigned to a part when specifying a material that exists in the material list to a part with a script.
The CreateMaterial() command is used to obtain the object for the material in the material list. The command is not used to define a new material.

IDispatch * Application::CreateMotorTemplate ( )

Creates an instance with JMAG-Express.

Precondition: Before executing this function, launch JMAG-Express using the LaunchMotorTemplate function.

TRemoteObjectProxy * Application::CreateMotorTemplateInternal ( )

Since this is an internal function, it is not officially supported.

Deprecated:

ParallelGroupConditionCreator * Application::CreateParallelConditionCreator ( Study * study )

Creates a ParallelGroupConditionCreator object.

Parameters

study Study object

Returns: ParallelGroupConditionCreator object

Point * Application::CreatePoint	(	Variant &	x,
		Variant &	y,
		Variant &	z
	)

Returns a Point object by specifying the coordinates (x, y, z).

Parameters

x	X-Coordinate
y	Y-Coordinate
z	Z-Coordinate

Returns: Point object

ProjectExportParameter * Application::CreateProjectExportParameter ( )

Creates a ProjectExportParameter object.

Returns: ProjectExportParameter object

ResponseDataParameter * Application::CreateResponseDataParameter ( String & name )

Creates a ResponseDataParameter object.

Parameters

name	Name of the response value

Returns: ResponseDataParameter object

RotateGroupConditionCreator * Application::CreateRotateConditionCreator ( Study * study )

Creates a RotateGroupConditionCreator object.

Parameters

study Study object

Returns: RotateGroupConditionCreator object

RttFileParameter * Application::CreateRttFileParameter ( )

Returns a RttFileParameter object.

Returns: RttFileParameter object

TRemoteObjectProxy * Application::CreateTransformerEditorInternal ( )

Since this is an internal function, it is not officially supported.

Deprecated:

void Application::DeleteAnalysisGroup ( Variant & val )

Deletes an analysis group by specifying a name or index.

Parameters

val	Name or index

void Application::DeleteModel ( Variant & val )

Deletes a model by specifying a name or index.

Parameters

val	Model name or index

void Application::DetachMotorTemplate ( )

Since this is an internal function, it is not officially supported.

Deprecated:

void Application::ExportAnalysisParameters	(	String &	filename,
		bool	exportCADParameter
	)

Exports Analysis Parameter items to designated file.

Parameters

filename	Export file name
exportCADParameter	Whether to output CAD parameters

void Application::ExportHoopsFile ( String & filename )

Exports hoops file to the specified file name.

Parameters

filename Full path name of the Hoops file to export

void Application::ExportImage ( String & filename )

Exports the model displayed in the graphics window as an image.

Parameters

filename File path

void Application::ExportImageWithSize	(	String &	filename,
		int	width,
		int	height
	)

Exports the model displayed in the graphics window as an image with the specified size.

Parameters

filename	Full path name of the image file to export
width	Width
height	Height

void Application::ExportProject	(	String &	filename,
		ProjectExportParameter *	parameter
	)

Exports the study set to the ProjectExportParameter object to the project file.

Parameters

filename	Project file name
parameter	ProjectExportParameter object

FunctionObjectFactory * Application::FunctionFactory ( )

Returns the FunctionObjectFactory object.

Returns: FunctionObjectFactory object

ResultViewItemList * Application::GetAllCasesResultViewItemList ( )

Returns result view list for all cases.

Returns: ResultViewItemList object

Variant Application::GetAllMessages ( )

Returns a list of all messages.

Returns: List of all messages

AnalysisGroup * Application::GetAnalysisGroup ( Variant & val )

Returns an analysis group by specifying a name or index.

Parameters

val	Name or index

Returns: AnalysisGroup object

String Application::GetAppDir ( )

Returns the installation folder of JMAG-Designer.

Returns: Installation folder of JMAG-Designer

String Application::GetCreatorName ( )

Returns the name of the creator of the project specified in the project properties.

Returns: Name of the creator

Model * Application::GetCurrentModel ( )

Returns an active model.

Returns: Model object

CurrentResult * Application::GetCurrentResult ( )

Returns the CurrentResult object.

Returns: CurrentResult object

Study * Application::GetCurrentStudy ( )

Returns the active Study object.

Returns: Study object

DataManager * Application::GetDataManager ( )

Returns the DataManager object.

Returns: DataManager object

String Application::GetDefaultModelFolderPath ( )

Since this is an internal function, it is not officially supported.

Deprecated:

String Application::GetDescription ( )

Returns the description in the project properties.

Returns: Description for the project

String Application::GetLastMessage ( )

Returns the latest error message as a string.

Returns: Latest error message

MaterialLibrary * Application::GetMaterialLibrary ( )

Returns the MaterialLibrary object.

Returns: MaterialLibrary object

Model * Application::GetModel ( Variant & val )

Returns the Model object by specifying a name or index.

Parameters

val	Model name or index

Returns: Model object

String Application::GetModelNameInProjectFromFilePath ( String & filename )

Returns the project file name by specifying the file path.

Parameters

filename File path

Returns: Project file name

String Application::GetOpenFile ( String & filter = String() )

Opens the file select dialog and opens the selected file.

Parameters

filter Filter when a file is selected

Returns: File name selected in the dialog

ParameterSettingStatus * Application::GetParameterSettingStatus ( )

Returns a ParameterSettingStatus object to specify the display status of the analysis parameter list.

Returns: ParameterSettingStatus object

Variant Application::GetPreference ( String & propName )

Returns the current settings for the items in the [Preferences] dialog (such as language, encoding, etc.).

Parameters

propName Type of properties to obtain
Language:Language
Encoding:Encoding

Returns: Value of properties
For more information about the condition type name that can be specified as propName , see Preferences . The value "System," "Japanese," "English," or "zh_CN" is returned when "Language" is selected.
The value "utf8," "utf16," "Big5," "Latin1," or "Shift-JIS" is returned when "Encoding" is selected.

String Application::GetProjectFolderPath ( )

Returns the path for the folder (*.jfiles) as a string.

Returns: Folder path

String Application::GetProjectKey ( )

Returns the project key.

Returns: Project Key

Returns the Project Key for the project. This is used for the Power Simulation License.

String Application::GetProjectName ( )

Returns the name of a project as a string.

Returns: Project name

String Application::GetProjectPath ( )

Returns path for project file (*.jproj) as a string.

Returns: Project file path

ResultViewItemList * Application::GetResultViewItemList ( )

Returns result view list.

Returns: ResultViewItemList object

String Application::GetSaveFile ( String & filter = String() )

Opens the save file dialog and returns the specified file name.

The file does not need to exist.

Parameters

filter Filter when a file is selected

Returns: File name selected in the dialog

Study * Application::GetStudy ( Variant & val )

Returns a Study object by specifying a name or index.

Parameters

val	Study name or index

Returns: Study object

CurrentResult * Application::GetStudyResult	(	String &	studyIdentifier,
		int	caseIndex
	)

Since this is an internal function, it is not officially supported.

Deprecated:

UserComponentList * Application::GetUserComponentList ( )

Returns the UserComponentList object.

Returns: UserComponentList object

String Application::GetUuid ( )

Returns the project UUID number.

Returns: Unique Identifier

Returns an unique ID for the project.

bool Application::HasAlreadyLoadModelInProject ( String & filename )

Returns whether or not a specified model is loaded to the project.

Parameters

filename Model file name

Returns: Loaded state

bool Application::HasError ( )

Returns True as a return value when errors occur.

Returns: Whether or not there are errors

bool Application::HasRunningProcess ( )

Returns True as the return value when a job is generating mesh or running a calculation.

Returns: Job status (whether or not a mesh is generating or a calculation is running)

bool Application::HasWarning ( )

Returns True as a return value when warnings occur.

Returns: Whether or not there are warnings

void Application::Import2DDataFromMotorTemplate ( bool isPartial )

Imports the model created with JMAG-Express into JMAG-Designer as a 2D model.

Parameters

isPartial

True=1 : Import as a partial model

False=0 : Import as a full model

void Application::Import2DDataFromMotorTemplateIndex	(	int	index,
		bool	isPartial
	)

Imports the model created by specifying the JMAG-Express into JMAG-Designer as a 2D model.

Parameters

index	Number of JMAG-Express
isPartial	True=1 : Import as a partial model False=0 : Import as a full model

void Application::Import3DDataFromMotorTemplate	(	bool	isPartial,
		bool	createCoilEnd
	)

Imports the model created with JMAG-Express into JMAG-Designer after being converted to a 3D model.

Parameters

isPartial	True=1 : Imports as a partial model False=0 : Imports as a full model
createCoilEnd	True=1 : Create coil ends False=0 : Do not create coil ends

void Application::Import3DDataFromMotorTemplateIndex	(	int	index,
		bool	isPartial,
		bool	createCoilEnd
	)

Imports the model created by specifying the JMAG-Express into JMAG-Designer after being converted to a 3D model.

Parameters

index	Number of JMAG-Express
isPartial	True=1 : Import as a partial model False=0 : Import as a full model
createCoilEnd	True=1 : Create coil ends False=0 : Do not create coil ends

void Application::ImportAnalysisTemplate ( AnalysisTemplateParameter * parameter )

Imports an analysis template (*. jtmpl) and links the template to a CAD model.

Parameters

AnalysisTemplateParameter object

void Application::ImportDataFromGeometryEditorIndex ( int index )

Imports a model created by specifying the Geometry Editor into JMAG-Designer.

Parameters

index Number of Geometry Editor

void Application::ImportDataFromTransformerEditorIndex ( int index )

Imports a model created by specifying the Transformer Modeling tool into JMAG-Designer.

Parameters

index Number of Transformer Modeling tool

void Application::ImportModel	(	String &	statorKey,
		String &	rotorKey
	)

Imports stator and rotor models at the same time.

Parameters

statorKey	Stator model key
rotorKey	Rotor model key

bool Application::IsExpressMode ( )

Returns True as a return value when running in Express mode.

Returns: Express mode

bool Application::IsIdRecordingMode ( )

Since this is an internal function, it is not officially supported.

Deprecated:

bool Application::IsStartRecording ( )

Since this is an internal function, it is not officially supported.

Deprecated:

bool Application::IsValid ( )

Returns True as the return value if an object is valid.

Returns: Whether or not the Application object is valid

void Application::Load ( String & filename )

Imports data from the specified file.

Parameters

filename File path

void Application::Load2DSAT ( String & filename )

Imports a 2D SAT file.

Parameters

filename File path

Model * Application::LoadCadData	(	String &	filename,
		String &	name
	)

Returns a Model object with the specified name by importing a CAD file.

Parameters

filename	Path to the CAD file
name	Name

Returns: Model object

Model * Application::LoadCadDataWithOption	(	String &	filename,
		String &	name,
		bool	useHealing,
		bool	removeSheet,
		String &	unitName = `""`
	)

Returns the Model object with the specified name by importing a CAD file. Functions such as healing and removing sheet parts and specify unit of length can be selected as options.

Parameters

filename	Path to the CAD file
name	Specified name
useHealing	True=1 : Use healing False=0 : Do not use healing
removeSheet	True=1 : Remove sheet parts False=0 : Do not remove sheet parts
unitName	Specified unit of length

Returns: Model object

Model * Application::LoadCATIAV5CadData	(	String &	filename,
		String &	name,
		bool	onlyVisibleSolid,
		bool	useHealing,
		bool	removeSheet,
		String &	unitName = `""`
	)

Returns the Model object with the specified name by importing a CATPart or CATProduct file. Functions such as only import visible solid, healing and removing sheet parts and specify unit of length can be selected as options.

Parameters

filename	Path to the CATPart or CATProduct file
name	Specified name
onlyVisibleSolid	True=1 : Import only visible solids False=0 : Import all solids
useHealing	True=1 : Use healing False=0 : Do not use healing
removeSheet	True=1 : Remove sheet parts False=0 : Do not remove sheet parts
unitName	Specified unit of length

Returns: Model object

Model * Application::LoadCreoCadData	(	String &	filename,
		String &	name,
		bool	onlyVisibleSolid,
		bool	useHealing,
		bool	removeSheet,
		String &	unitName = `""`
	)

Returns the Model object with the specified name by importing an asm or prt file. Functions such as only import visible solid, healing and removing sheet parts and specify unit of length can be selected as options.

Parameters

filename	Path to the asm or prt file
name	Specified name
onlyVisibleSolid	True=1 : Import only visible solids False=0 : Import all solids
useHealing	True=1 : Use healing False=0 : Do not use healing
removeSheet	True=1 : Remove sheet parts False=0 : Do not remove sheet parts
unitName	Specified unit of length

Returns: Model object

void Application::LoadMesh ( String & filename )

Imports data from the specified file (mesh data).

Parameters

filename File path

void Application::LoadNewCaseData ( String & xmldata )

Since this is an internal function, it is not officially supported.

Deprecated:

void Application::LoadNewCaseFile ( String & filename )

Since this is an internal function, it is not officially supported.

Deprecated:

Model * Application::LoadNXCadData	(	String &	filename,
		String &	name,
		bool	onlyVisibleSolid,
		bool	useHealing,
		bool	removeSheet,
		String &	unitName = `""`
	)

Returns the Model object with the specified name by importing a CAD file. Functions such as only import visible solid, healing and removing sheet parts and specify unit of length can be selected as options.

Parameters

filename	Path to the CAD file
name	Specified name
onlyVisibleSolid	True=1 : Import only visible solids False=0 : Import all solids
useHealing	True=1 : Use healing False=0 : Do not use healing
removeSheet	True=1 : Remove sheet parts False=0 : Do not remove sheet parts
unitName	Specified unit of length

Returns: Model object

void Application::LoadRTTP	(	String &	filename,
		String &	password
	)

Imports data from the specified file and set password.

Parameters

filename	File path
password	Password

String Application::MainWindowTitle ( )

Returns the character string displayed in the title bar of the main window.

Returns: The character string displayed in the title bar of the main window

int Application::MajorVersion ( )

Returns the major version number.

Returns: Version number

If the version number is "1.2.5", "1" is returned.

int Application::MinorVersion ( )

Returns a minor version number.

Returns: Version number

If the version number is "1.2.5", "2" is returned.

void Application::NewProject ( String & name )

Creates a project with the given name.

Parameters

name	Project name

int Application::NumAnalysisGroups ( )

Returns the number of analysis groups.

Returns: Number of analysis groups

int Application::NumModels ( )

Returns the number of models.

Returns: Number of models

int Application::NumStudies ( )

Returns the number of studies.

Returns: Number of studies

void Application::OnHiddenMotorTemplate ( qint64 pid )

Since this is an internal function, it is not officially supported.

Deprecated:

void Application::OutputLogDebugInfo ( String & info )

Since this is an internal function, it is not officially supported.

Deprecated:

void Application::OutputLogInfo ( String & info )

Since this is an internal function, it is not officially supported.

Deprecated:

void Application::RunScriptFile	(	String &	filename,
		String &	type = `""`
	)

Runs a script file (*.vbs).

Parameters

filename	File path
type	User : User folder System : Installation folder

void Application::SaveAs ( String & filename )

Saves data to a specified path.

Parameters

filename File path

void Application::SetCloseWithoutTermination ( bool flag )

Since this is an internal function, it is not officially supported.

Deprecated:

void Application::SetCreatorName ( String & name )

Specifies the name of the project creator.

Parameters

name	Name of the project creator

void Application::SetCurrentModel ( Variant & val )

Switches an active model by specifying a name or index.

Parameters

val	Model name or index

void Application::SetCurrentStudy ( Variant & val )

Switches an active study by specifying a name or index.

Parameters

val	Study name or index

void Application::SetDescription ( String & description )

Specifies the description of the project.

Parameters

description Description for the project

void Application::SetGeometry	(	int	x,
		int	y,
		int	w,
		int	h
	)

Determines the position and size of the window.

Parameters

x	The horizontal position of the top left-hand corner of the window (pixel)
y	The vertical position of the top left-hand corner of the window (pixel)
w	Width of the window (pixel)
h	Height of the window (pixel)

A value smaller than the minimum size of the window cannot be applied even if such a value is specified.

void Application::SetMessageVisible ( bool on )

Since this is an internal function, it is not officially supported.

Deprecated:

void Application::SetModelAsCurrent ( Model * model )

Activates the specified Model object.

Parameters

model Model object

void Application::SetModelOrder	(	Variant &	val,
		int	position
	)

Changes the order of the studies.

Parameters

val	Model name or model ID
position	Model position

void Application::SetPosition	(	int	x,
		int	y
	)

Determines the position of the window.

Parameters

x	The horizontal position of the top left-hand corner of the window (pixel)
y	The vertical position of the top left-hand corner of the window (pixel)

void Application::SetPreference	(	String &	propName,
		Variant &	val
	)

Updates the current settings for the items in the [Preferences] dialog (such as language, encoding, etc.).

Parameters

propName	Property name
val	Property value For more information about the condition type name that can be specified as propName , see Preferences .

void Application::SetProjectName ( String & name )

Specifies the name of a project.

Parameters

name	Project name

void Application::SetShowProgressDialog ( bool show )

Since this is an internal function, it is not officially supported.

Deprecated:

void Application::SetSize	(	int	w,
		int	h
	)

Determines the size of the window.

Parameters

w	Width of the window (pixel)
h	Height of the window (pixel)

A value smaller than the minimum size of the window cannot be applied even if such a value is specified.

void Application::SetStudyAsCurrent ( Study * study )

Activates the specified Study object.

Parameters

study Study object

void Application::SetupUserProgress ( String & label )

This function needs to be called before starting the progress display in the progress dialog.

Parameters

label Message displayed on the dialog

void Application::SetUseExceptions ( bool value )

Specifies the flag to convert errors to Python exceptions.

Parameters

value

True=1 : Use exceptions

False=0 : Do not use exceptions

void Application::SetUserProgressMaxSteps ( int steps )

Specifies a progress interval on the dialog using the specified number of steps.

Parameters

steps Number of steps

void Application::SetUserProgressMessage ( String & label )

Specifies a message on the progress dialog.

Parameters

label Message displayed on the dialog

void Application::SetUserProgressUseCancel ( bool useCancel )

Specifies whether to use the Cancel button in the progress dialog.

Parameters

useCancel

Number of steps

True=1 : Use

False=0 : Do not use

void Application::SetVisible ( bool visible )

Switches between displaying and hiding the main window of the application.

Parameters

visible

True=1 : Displays

False=0 : Hides

void Application::ShowCircuitGrid ( bool show )

Switches between showing and hiding the grid of circuit editor.

Parameters

show	True=1 : Shows False=0 : Hides

void Application::Sleep ( int milliSeconds )

Specifies JMAG-Designer in sleep mode to a specified period of time.

Parameters

milliSeconds Sleep mode

Returns: Property values
The time period for sleep mode is specified in milliseconds. For example, specify "1000" in "milliSeconds" to set a wait time of 1 second.

void Application::StartBatchMaterialUpdate ( )

Starts batch Material object update.

This is used to prevent the display from being updated after every material update.

void Application::StartCommandGroup ( String & description )

Starts grouping multiple commands together as one action.

Parameters

description Action description

void Application::SubmitAllModelsRemote	(	String &	machine,
		String &	cpu,
		Variant &	keepremote
	)

Submits all studies of a project to queue on a specified machine.

Parameters

machine	Control server name of the remote system
cpu	CPU group to use for calculation
keepremote	Saves / doed not save results in the control server On : Leaves results on remote machine Off : Moves results to local machine Both : Copies to local and deletes on server

void Application::SubmitLocalFromJproj	(	String array &	studies,
		int	numOfJobs
	)

Submits selected studies to queue on a local machine.

Parameters

studies	Study index
numOfJobs	Number of jobs

void Application::SubmitRemoteFromJproj	(	String array &	studies,
		int	numOfJobs,
		String &	machine,
		String &	cpu,
		Variant &	keepremote
	)

Submits selected studies to queue on a specified machine.

Parameters

studies	Study index
numOfJobs	Number of jobs
machine	Control server name of a remote system
cpu	CPU group to use for calculation
keepremote	Saves / does not save results to a control server On : Leaves results on remote machine Off : Moves results to local machine Both : Copies to local and deletes on server

int Application::SubVersion ( )

Returns the subversion number.

Returns: Version number

If the version number is "1.2.5", "5" is returned.

String Application::Translate	(	String &	value,
		String &	context
	)

Translates a string.

Parameters

value	String to be translated
context	Category

Returns: Translated string

bool Application::UserProgressWasCanceled ( )

Returns True as a return value if the progress dialog is canceled.

Returns: Whether or not the progress dialog was canceled

String Application::VersionString ( bool includeSub )

Returns the version number as a string.

Parameters

includeSub

True=1 : Include subversion

False=0 : Exclude subversion

Returns: Version number

ViewController * Application::View ( )

Returns a ViewController object.

Returns: ViewController object

bool Application::visible ( )

Returns True as the return value if the main window of application is displayed.

Returns: Show / hide window

Public Member Functions

Detailed Description

Member Function Documentation
