ParametricRange class is used to specify the parametric variable range.
The class can be called from OptimizationTable class.
. More...

Public Member Functions
String	GetItemName ()
	Returns the variable name. More...

double	GetMax ()
	Returns the maximum value. More...

double	GetMin ()
	Returns the minimum value. More...

String	GetParameterName ()
	Returns the parameter name. More...

bool	IsModifyMaxValueRange ()
	Returns whether to search the parameter range for the maximum value. More...

bool	IsModifyMinValueRange ()
	Returns whether to search the parameter range for the minimum value. More...

bool	IsValid ()
	Returns True as a return value if an object is valid. More...

void	SetMax (double max)
	Specifies the maximum value. More...

void	SetMin (double min)
	Specifies the minimum value. More...

void	SetModifyMaxValueRange (bool flag)
	Specifies whether to search the parameter range for the maximum value. More...

void	SetModifyMinValueRange (bool flag)
	Specifies whether to search the parameter range for the minimum value. More...

Detailed Description

ParametricRange class is used to specify the parametric variable range.
The class can be called from OptimizationTable class.
.

Example of calling the class object:

app.GetModel(0).GetStudy(0).GetOptimizationTable().GetParametricItem(0)

Member Function Documentation

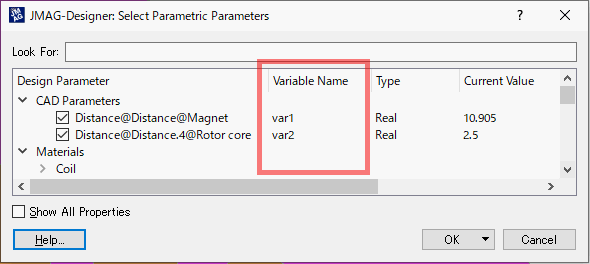

String ParametricRange::GetItemName ( )

Returns the variable name.

double ParametricRange::GetMax ( )

Returns the maximum value.

double ParametricRange::GetMin ( )

Returns the minimum value.

String ParametricRange::GetParameterName ( )

Returns the parameter name.

bool ParametricRange::IsModifyMaxValueRange ( )

Returns whether to search the parameter range for the maximum value.

bool ParametricRange::IsModifyMinValueRange ( )

Returns whether to search the parameter range for the minimum value.

bool ParametricRange::IsValid ( )

Returns True as a return value if an object is valid.

void ParametricRange::SetMax ( double max )

Specifies the maximum value.

Parameters

max	Maximum value

void ParametricRange::SetMin ( double min )

Specifies the minimum value.

Parameters

min	Minimum value

void ParametricRange::SetModifyMaxValueRange ( bool flag )

Specifies whether to search the parameter range for the maximum value.

Parameters

flag	Whether to search the parameter range for the maximum value

void ParametricRange::SetModifyMinValueRange ( bool flag )

Specifies whether to search the parameter range for the minimum value.

Parameters

flag	Whether to search the parameter range for the minimum value
