[JAC115] Eccentricity Analysis of an SPM Motor

Sign in to download the data

Sign In

*Please prepare a license ID and password for the license administrator.
*It is different from the service for JMAG WEB MEMBER (free membership). Please be careful.
About authentication ID for JMAG website

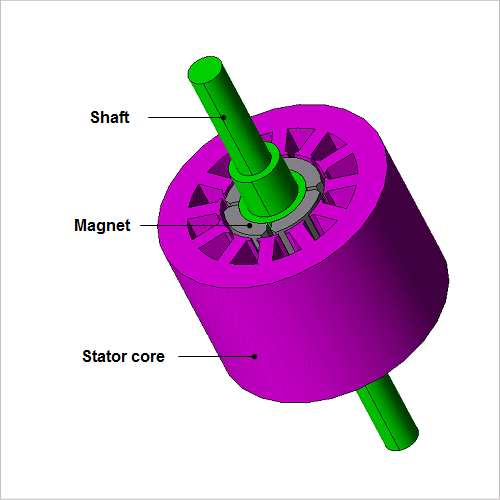

Overview

Motors have many parts, which must be assembled correctly for a usable product. Even if each part is made within acceptable limits for manufacturing errors, when various parts with small errors are put together, the errors can have a cumulative effect. In particular, if eccentricity (deviation, deflection) occurs in the cylindrical axis of the rotor and stator, the magnetic flux density distribution and electromagnetic force can become unbalanced, causing vibration and noise. Ideally, parts would be manufactured without any errors, but in reality, error reduction requires precise mechanical manufacturing, which means a huge increase in costs. This is why it is necessary to figure out the tolerance zone of trade-off between settings and performance for each part at the design stage.
In order to grasp these at the design stage, highly precise evaluation sensitive to parts’ manufacturing errors is needed, so electromagnetic field analysis using the finite element method (FEM) is effective.
This Application Note presents how to evaluate the cogging torque waveform and effects on the electromagnetic force acting on the stator in an SPM motor with and without eccentricity.

Torque Waveform / Magnetic Flux Density Distribution

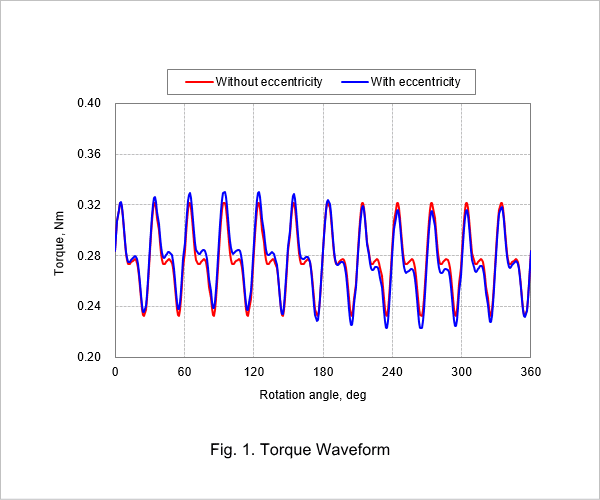

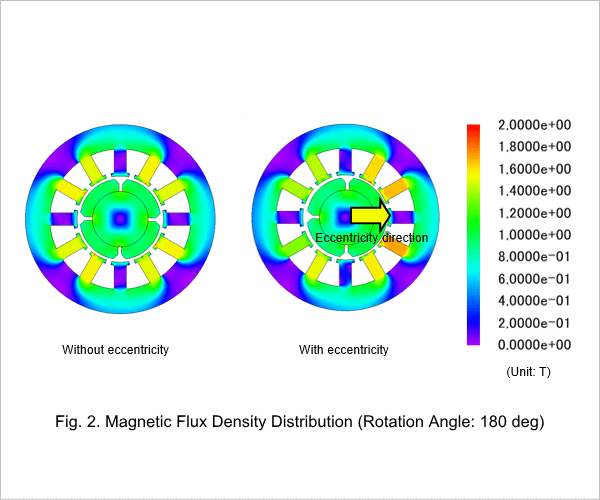

The torque waveform with and without eccentricity is indicated in fig. 1. The magnetic flux density distribution with a rotation angle of 180 deg at the largest difference in the position of the rotor is indicated in fig. 2. Torque variations occur with each one rotation of one period when eccentricity is applied, as indicated in fig. 1. The magnetic flux density increases in the direction of the eccentricity in the stator core, as indicated in fig. 2. This is how variations in the magnetic flux density distribution caused by eccentricity affect the torque waveform.

Electromagnetic Force Acting on the Stator

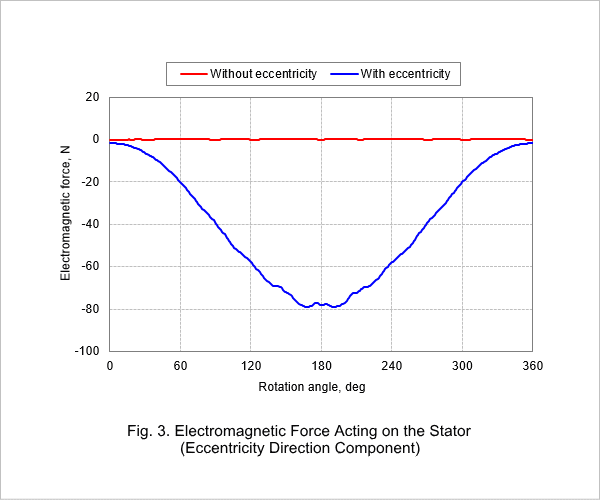

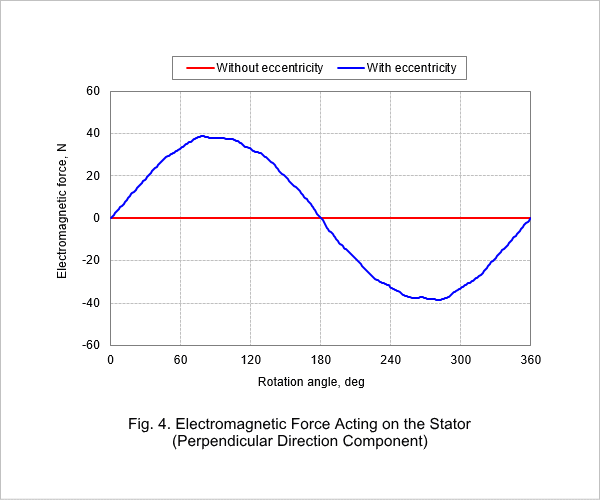

The eccentricity direction component of the electromagnetic force acting on the stator is indicated in fig. 3. The perpendicular direction component of the eccentricity is indicated in fig. 4. Each of the components has an electromagnetic force waveform with one period of one rotation due to eccentricity. Vibration and noise can be caused by electromagnetic resonance if the frequency component of the electromagnetic force acting on each part is close to the eigenmode of the motor.
