Noesis Solutions

Noesis Solutions

Optimus, an Automation and Optimization tool by Noesis Solutions, enables users to outsmart competition while taking into account all relevant design constraints – effectively implementing an Objectives Driven Engineering process, and saving time & resources. Optimus bundles a powerful range of capabilities for Engineering Process Integration, Design Space Exploration & Optimization, and Robustness & Reliability.

製品名

Optimus

製品紹介

As a state-of-the-art automation & optimization software, Optimus offers a number of direct interfaces to a wide range of leading simulation softwares – and to JMAG-Designer in particular. Optimus for JMAG-Designer automates the creation of a simulation workflow that contains JMAG-Designer model entries. Rather than defining manually substitution and extraction rules of design variables and output results, the user sets up the parametrization of his JMAG-Designer model from a dedicated Optimus dialog.

A powerful search engine embedded in Optimus offers dedicated filters, based on the JMAG-Designer parameter type, to simplify the selection of the design parameters and the desired result components.

Optimus automatically modifies the JMAG-Designer model design parameters, generates and updates the underlying files and extracts the result outputs (scalar and vectors) to be used in a simulation campaign.

The automated Optimus process frees users from repetitive manual model changes and data processing, while efficiently identifying design space regions containing leading candidate designs. Those product designs meet a combination of objectives set by multiple (often competing) performance targets, as well as design constraints imposed by manufacturing realities and stringent regulatory and standardization requirements.

Manufacturing tolerances may seriously impair performance of optimized product designs. Optimus therefore applies robustness and reliability concepts to ensure that designs are robust to manufacturing tolerances and geometric variations.

Newly supported features/case

  • Efficiency Map

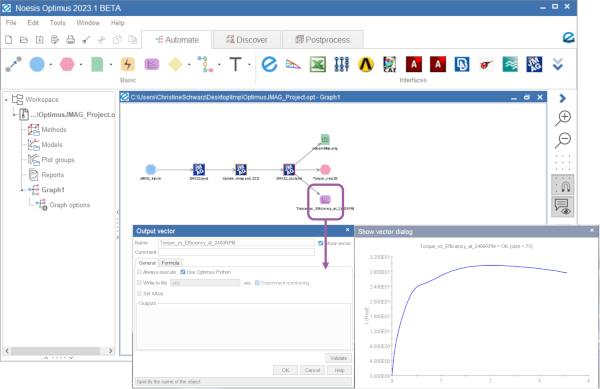

In addition to the automated extraction of scalar result values and curves or vectors, now also efficiency maps can be created and stored automatically from within the Optimus workflow. The JMAG output interface in Optimus displays a full list of efficiency maps that can be extracted by simple selection of the user. For each experiment started within Optimus an efficiency map is created and available for analysis.

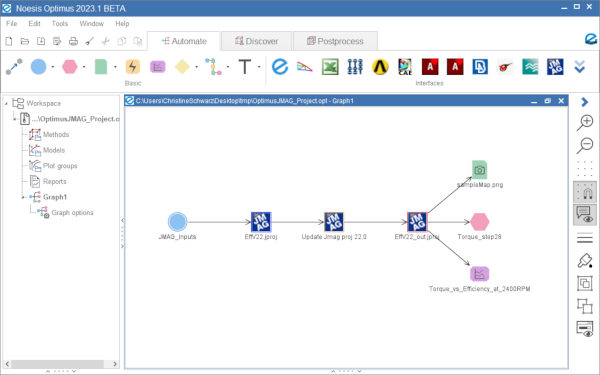

JMAG_Workflow

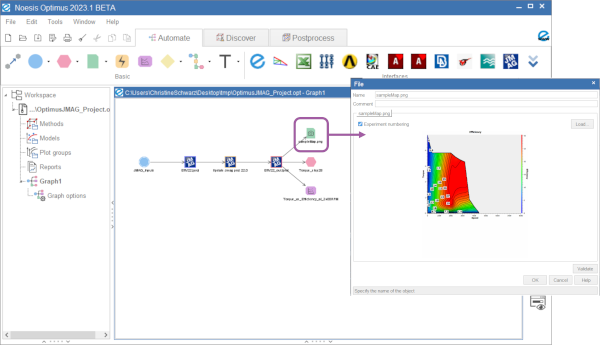

JMAG_EfficiencyMap

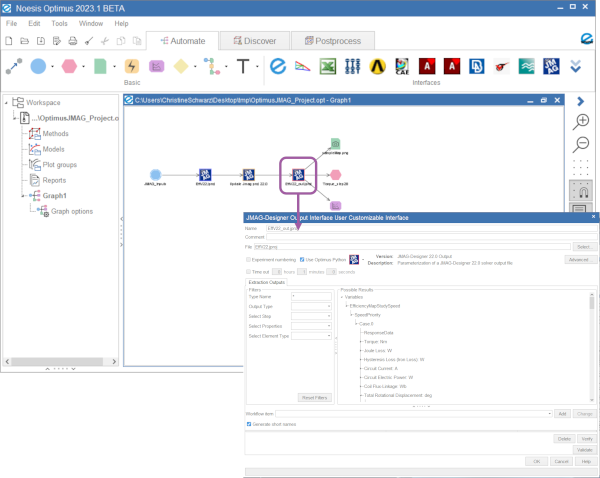

OutputScan

JMAG-Designer | Supported Versions

Software Version Optimus 2022.2 Optimus 2023.1
Win10 64bit Win10 64bit
22.0 × Supported
21.0 Supported Supported
20.0 Supported Supported
19.0 Supported Supported

※サポートが終了したJMAGのバージョンも掲載しています。
 最新バージョンおよびサポート対象はこちらをご確認ください。

製品機能

  • Process integration and automation
  • Direct interface to JMAG-Designer for easy integration within an automated simulation process
  • Design space exploration
  • Design of experiments
  • Surrogate modeling (or Response Surface Modeling)
  • Single and multi-objective design optimization
  • Statistical data mining & analysis
  • Robust design optimization
  • Reliability-based design optimization

産業分野

  • Aviation & Aerospace
  • Automotive
  • Consumer Goods
  • Defense
  • Electronics
  • Energy & Environment
  • Ground Vehicle
  • Healthcare
  • Industrial Equipment

会社情報

Established in 2003, Noesis Solutions, a trusted digital engineering innovation partner, has empowered customers adopt a transformational strategy that resolves their toughest multi-disciplinary engineering challenges of today. Our continuously evolving product portfolio, state-of-the-art technology, and unmatched customer services enable customers transform the way they build their products in a much faster and an efficient manner.

Noesis Solutions is a majority-owned subsidiary of Cybernet Systems, a leading provider of multi-domain CAE solutions covering a vast range of engineering problems. Headquartered in Leuven, Belgium, Noesis Solutions operates through a network of subsidiaries and representatives in key locations around the world.

会社名 Noesis Solutions
住所 Gaston Geenslaan 11 B4 3001 Leuven, Belgium
TEL +32 16 317 040
FAX +32 16 317 048
URL https://www.noesissolutions.com/
