[RTML-055] WFSM_07

Sign in to download the data

Sign In
Create an account (Free) About authentication ID for JMAG website

Available in MATLAB version R2021a and later.

Features and principal use

Geometry display on JMAG-Designer

Geometry display on JMAG-Designer

Type

Model WFSM_07
Model name WFSM
Max. Power 75(kW)
Voltage/Current (armature) DC600(V)/250(A)
Voltage/Current (field) DC600(V)/45(A)
Number of Poles 8
Number of Slots 48
Number of Phases 3
Rotor WF
Stator (Outside Diameter) 212(mm)
Stator (Inside Diameter) 133.4(mm)
Stator Distributed winding
Number of Turns (armature) 5
Number of Turns (field) 30
Height 200(mm)
Inertia Moment 0.04275(kg・m^2)

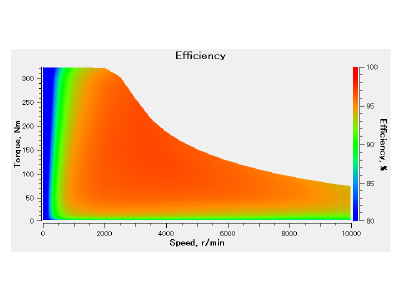

Result display on JMAG-Designer Ver.22.2

Result display on JMAG-Designer Ver.22.2

Calculation condition of efficiency map using JMAG-Designer Ver.22.2

– Motor Control

Max.Speed 10000(r/min)
Control Type Max. Power

– Inverter

Max.Voltage 600(V)
Max.Current 250(Apeak)
Max.FieldCurrent 45(Apeak)
Efficiency Operating range
not less than 90% 80.8%
not less than 80% 84.7%
not less than 70% 84.7%
not less than 60% 84.7%
not less than 50% 84.7%

* Iron Loss is accounted.
