[RTML-058] IM Constant rating 10(kW)

Sign in to download the data

Sign In
Create an account (Free) About authentication ID for JMAG website

Available in MATLAB version R2021a and later.

Features and principal use

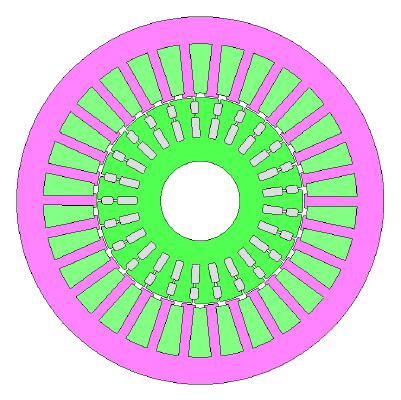

Geometry display on JMAG-Express

Geometry display on JMAG-Express

Type

Model 10k_D_D_IM
Model name IM
Max. Power 10(kW)
Voltage/Current DC440(V)/200(A)
Number of Poles 10
Number of Slots 30
Number of Phases 3
Stator (Outside Diameter) 92.5(mm)
Stator (Inside Diameter) 52.5(mm)
Stator Distributed winding
Number of Turns 14
Height 37(mm)
Inertia Moment 0.005(kg・m^2)
Mass 1.84(kg)

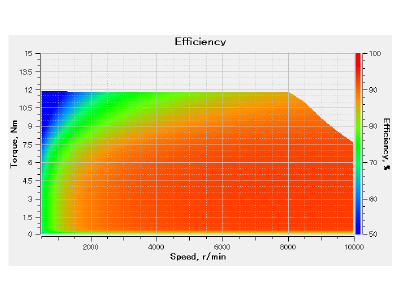

Result display on JMAG-Designer Ver.22.2

Result display on JMAG-Designer Ver.22.2

Calculation condition of efficiency map using JMAG-Designer Ver.22.2

– Motor Control

Max.Speed 10000(r/min)
Control Type Max. Power

– Inverter

Max.Voltage 440(V)
Max.Current 200(Apeak)
Efficiency Operating range
not less than 90% 51.2(%)
not less than 80% 83.9(%)
not less than 70% 92.1(%)
not less than 60% 95.9(%)
not less than 50% 97.4(%)

* Iron Loss is accounted.
