[RTML-031] PMSM/IPM Constant rating 100(kW) 3-phase

to download the data

RTT file Simulink sample Circuit

Available in MATLAB version R2019a and later.

Features and principal use

Slim type, Power source for large-size equipment

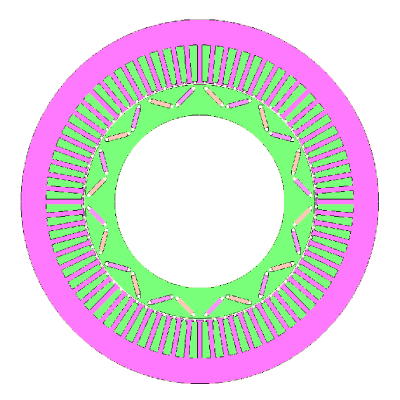

Geometry display on JMAG-Express

Geometry display on JMAG-Express

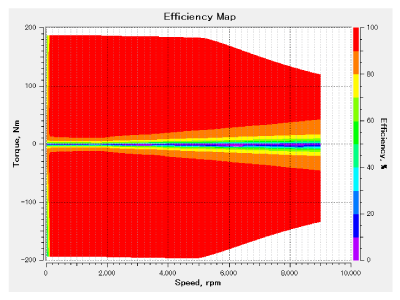

Result display on JMAG-RT Viewer Type3

Result display on JMAG-RT Viewer Type3


Model 100k_D_D_IV
Model name PMSM
Max. Power 100(kW)
Voltage/Current DC500(V)/400(A)
Number of Poles 12
Number of Slots 72
Number of Phases 3
Rotor IPM
Stator (Outside Diameter) 400(mm)
Stator (Inside Diameter) 260(mm)
Stator Distributed winding
Number of Turns 3
Height 63(mm)
Magnet Neodymium sintered
Inertia Moment 1.40e-1(kg·m^2)
Mass 61.84(kg)
Max. Current 283(Apeak)

Calculation results of JMAG-Designer

Average torque(N·m) 177(N·m)
Ld 0.20(mH)
Lq 0.37(mH)
Inductance 0.18(mH)
Torque constant 0.626(N·m/A)

Calculation condition of efficiency map using JMAG-RT Viewer
Motor Control

Max.Speed 9000(r/min)
Control Type Max. Power


Max.Voltage 500(V)
Max.Current 283(Apeak)
Efficiency Operating range
not less than 90% 85.5(%)
not less than 80% 93.3(%)
not less than 70% 95.9(%)
not less than 60% 97.4(%)
not less than 50% 98.2(%)

* Iron Loss is accounted.
