Available in MATLAB version R2021a and later.
Features and principal use

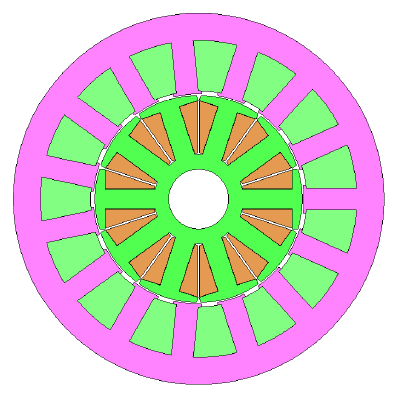

Geometry display on JMAG-Designer
Type
| Model | WFSM_04 |
|---|---|
| Model name | WFSM |
| Max. Power | 10(kW) |
| Voltage/Current (armature) | DC240(V)/84.8(A) |
| Voltage/Current (field) | DC300(V)/50(A) |
| Number of Poles | 10 |
| Number of Slots | 15 |
| Number of Phases | 3 |
| Rotor | WF |
| Stator (Outside Diameter) | 185(mm) |
| Stator (Inside Diameter) | 105(mm) |
| Stator | Concentrated winding |
| Number of Turns (armature) | 20 |
| Number of Turns (field) | 50 |
| Height | 40(mm) |
| Inertia Moment | 0.003475(kg･m^2) |

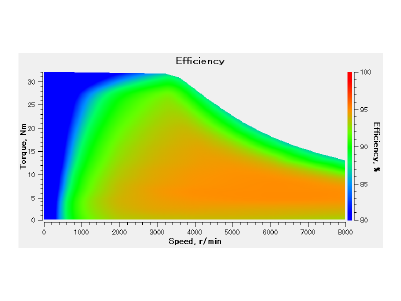

Result display on JMAG-Designer Ver.22.2
Calculation condition of efficiency map using JMAG-Designer Ver.22.2
– Motor Control
| Max.Speed | 8000(r/min) |
|---|---|
| Control Type | Max. Power |
– Inverter
| Max.Voltage | 240(V) |
|---|---|
| Max.Current | 84.8(Apeak) |
| Max.FieldCurrent | 15(Apeak) |
| Efficiency | Operating range |
|---|---|
| not less than 90% | 64.8% |
| not less than 80% | 82.3% |
| not less than 70% | 86.2% |
| not less than 60% | 87.8% |
| not less than 50% | 88.4% |
* Iron Loss is accounted.
